UHF FM Yagi 11 elements 440-450MHz Cushcraft A449-11S UHF FM Yagi 11 elements 440-450MHz

UHF FM Yagi 11 elements 440-450MHz

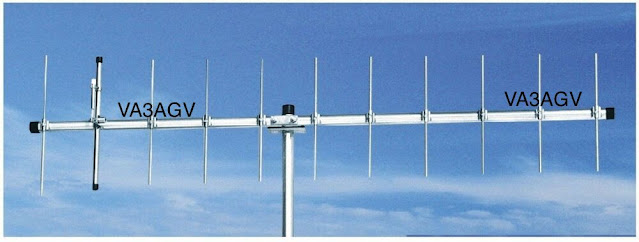

Cushcraft A449-11S UHF FM Yagi 11 elements 440-450MHz





A449-11S - 440-450MHZ, YAGI, 11 ELE, 13.2 DBI, 350W
Use one of these 440 MHz beams for your FM/Packet needs. Both work great for vertical or horizontal polarization.

Specifications
Frequency, MHz: 440-450
No. Elements:11
Forward Gain, dBi: 13.2
Front to Back Radio, dB:20
SWR 1.2:1 Typical
2:1 Bandwidth, MHz
>10
Power Rating, Watts PEP: 350
3 dB Beamwidth, Degees
E Plane
48
Side Lobe Atten., dB, E Plane: 40
Boom Length, ft (m):4.4 (1.35)
Electrical Wavelength:
Longest Element, in (cm): 13 (33)
Turning Radius, ft (m):2.8 (0.85)
Mast Size Range, in (cm):1.25 - 1.5
Wind Load, ft sq (m sq)0.39 (0.04)
Weight, lb (kg) 4 (1.8)

https://radioworld.ca/cus-a44911s
